Heavy Oil Properties & Processing
Research Program





Research Facilities



We are located in the Schulich School of Engineering in the new Energy, Environment & Experiential Learning (EEEL) building.



The research group employs a range of techniques using state-of-the-art apparatus such as:

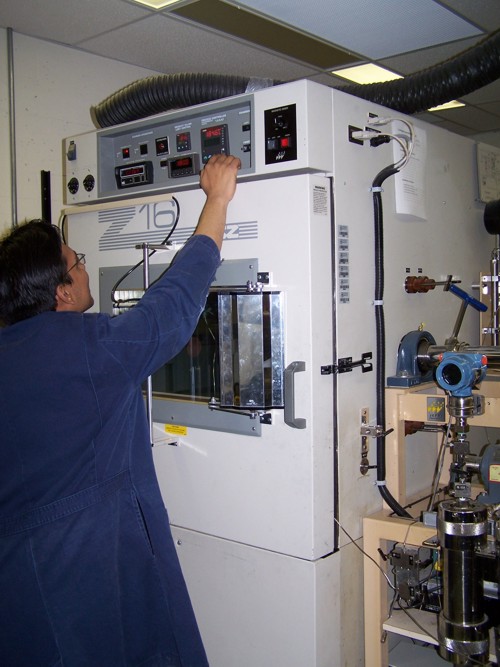

       PVT cell equipped for solids
      detection:

          o       Maximum of 70 MPa and 200oC

          o       High Pressure Microscope stage

o    Near IR solids detector

          o       Modified to collect and separate
          asphaltenes
in a "centrifuge tube"
          pressure vessel

          o       In-line Cambridge viscometer

          o       In-line Anton Parr density meter








  Capillary viscometer:


           o  Capable of measuring viscosities up to one hundred

               thousand centipoise

           o  Measurements at temperatures from 20 to 150oC

                    and pressures up to 70 MPa








Diffusivity Apparatus (gas-liquid):

                o  Diffusivity up to 200oC and 1500 psi

                o  Diffusivity up to 300oC and 1500 psi










              Modified Hele-Shaw Cell:

                 o       Dynamics of drainage of Heavy
                  Oil-Solvent Systems

                 o       Measure liquid flow rates, density
                   & interface profile over time









    Drop shape analyzer tensiometer:


    o  Capable of measuring interfacial rheology
    over a range of temperatures and pressure

o
  Equipped to measure interfacial tension,
    visco-elastic properties, time dependent
    behaviour and contact angles
o   Equipped to measure interfacial tension,
    visco-elastic properties, time dependent
    behaviour & contact angles






    Vapour pressure osmometers (VPO):

   o  used to determine molar mass of asphaltenes, resins, aromatics and saturates and to define self-association behaviour *













 Deep vacuum fractionation & vapour pressure apparatus:

          o  static high vacuum apparatus with operating range of 100 to
         1x10-9 kPa and 25 to 300
oC
     o  capable of generating physical fractions of heavy oil and
         bitumen up to 60% in mass
     o  capable of measuring vapour pressures from 1 to 1x10-4 kPa
         and 25 to 200oC





    Advanced Distillation Curve (ADC)

 o  For atmospheric distillation of light to heavy oil
 o  Capable of dewatering oil
 o  Convert data to TBP without collecting fractions







 Spinning Band Distillation (SBD)

                        o  Ideal for separation of close-boiling compounds
                   o  Collects 4 fractions
                   o  May be run under light vacuum, 2 to 760 Torre








A broad range of other oil characterization and surface science apparatus, including:


SARA Analysis for determination of Saturates, Aromatics, Resins and Asphaltenes in heavy oil



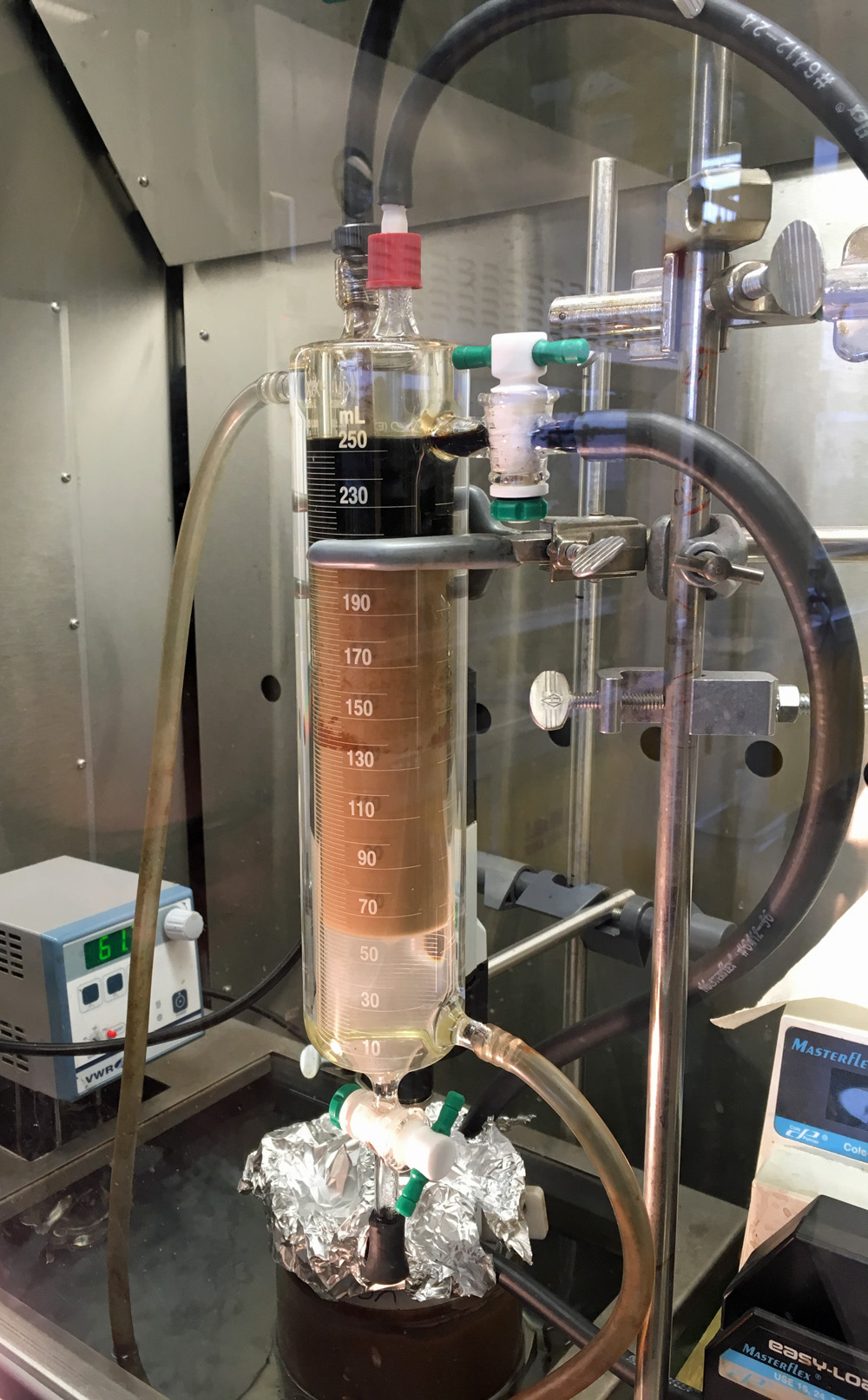

             Rag Layer Apparatus                                        Emulsion Preparation & Stability Determination
 for measurement of growth/decay
            of emulsion rag layers





     Zeiss Axiovert S100 Microscope              Kruss K12 Tensiometer             Anton Paar Abbemat Refractometer
                                                         (Wilhelmy Plate, Du Nuoy Ring)             operating range 10-70
oC *



   A broad range of other laboratory apparatus, including:

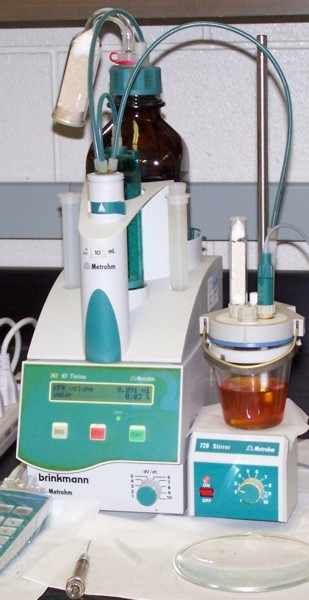

                Analytical Balances                     Batch Extraction Unit (BEU)              Karl Fischer Titration
                                                                   for oil sand (froth) extraction          for water determinations



                                   Centrifuges      *                                                  Anton Paar DMA4500 Density Meter
                                                                                                            operating range 10 - 80oC



Vacuum ovens *                                         Ovens



               Rotary evaporators


The PVT laboratory is located in EEEL 433.  The Emulsion & Characterization Lab is located in EEEL 567.



We are on the main University of Calgary campus in beautiful Calgary, Alberta, Canada.

* photo credit to James McMenamin
